Acoustic Glazing
Singapore

Acoustic glazing refers to any glass assembly engineered specifically to attenuate sound transmission from exterior to interior spaces. Unlike standard float glass or basic tempered panels, acoustic glazing assemblies are designed around three physical principles: mass (heavier glass blocks more sound energy), damping (viscoelastic interlayers absorb vibrational energy), and decoupling (air gaps between panes break the direct vibration path). Our team has installed acoustic glazing across Singapore for more than a decade, and we have observed that the difference between a well-specified system and an off-the-shelf double-glazed unit can be 15 dB or more — the acoustic equivalent of reducing traffic noise from a busy intersection to a quiet library.

Singapore presents a particularly challenging acoustic environment. The island is crossed by major expressways — the Pan-Island Expressway (PIE), Ayer Rajah Expressway (AYE), Central Expressway (CTE), and East Coast Parkway (ECP) — that carry continuous heavy vehicle traffic generating low-frequency rumble in the 63–250 Hz range. Changi Airport flight paths subject eastern districts to intermittent aircraft noise reaching 85 dB at the facade. The dense urban fabric of HDB estates, condominiums, and shophouses means that noise reflects between buildings, amplifying rather than dissipating sound energy. In this context, standard 5mm or 6mm single glazing, which offers an Rw of approximately 28–30, is wholly inadequate for bedrooms, study rooms, and any space where concentration or rest is required.

Our approach to acoustic glazing begins with a noise assessment. We measure the existing sound pressure level at the facade using a Class 1 sound level meter, identify the dominant frequency spectrum, and determine the required noise reduction based on the room use and the client's preference. A living room facing a busy main road may accept an interior level of 45 dB during daytime, while a bedroom may require 35 dB or lower for undisturbed sleep. From these targets, we work backwards to specify the glazing system, the frame, and the perimeter seals as an integrated assembly rather than treating the glass in isolation.

The Building and Construction Authority (BCA) of Singapore does not currently mandate minimum acoustic ratings for residential glazing, but the Urban Redevelopment Authority (URA) and Housing & Development Board (HDB) have introduced guidelines for developments near noise-generating infrastructure. Our team maintains documentation on these guidelines and can advise architects and developers during the design stage to ensure that proposed glazing specifications will satisfy both the acoustic targets and the regulatory submissions. For existing buildings, our retrofit solutions — including secondary glazing and acoustic-laminated replacement units — can bring properties up to modern standards without structural alteration.

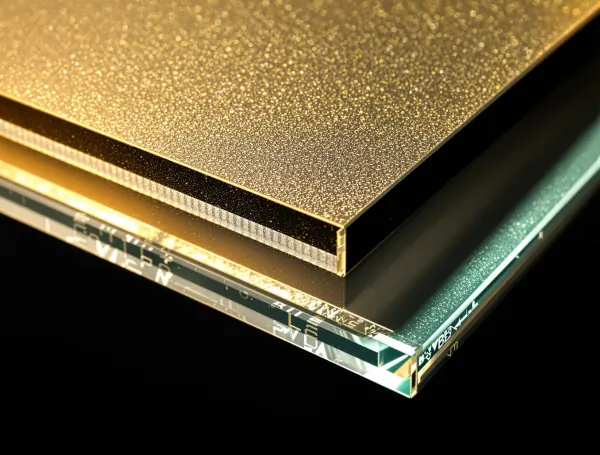

Laminated glass consists of two or more glass plies bonded together with an interlayer. In acoustic applications, the interlayer is not merely a safety device — it is the primary mechanism for damping vibrational energy. Our team works with three interlayer types for acoustic glazing in Singapore: standard PVB, structural SGP ionoplast, and specialised acoustic PVB. The choice between them depends on whether the project prioritises noise reduction, structural performance, or a balanced combination of both.

Standard PVB (polyvinyl butyral) is the most common interlayer in Singapore glazing. A 6mm + 1.52mm PVB + 6mm laminated assembly achieves an STC of approximately 37 and an Rw of 33–34. The PVB layer damps the coincidence dip in the 1000–3000 Hz range, which is where ordinary monolithic glass is most transparent. Below 250 Hz, however, the damping effect diminishes because the wavelength is too long for the thin interlayer to absorb effectively. Standard PVB laminated glass is therefore a good baseline for moderate urban noise but falls short for highway-adjacent properties where low-frequency truck and bus rumble dominates.

SGP ionoplast (commonly known by a trade name) is a structural interlayer with roughly 100 times the shear modulus of standard PVB. It is the preferred choice for frameless balustrades, large overhead glazing, and hurricane-resistant applications because it retains stiffness at elevated temperatures and provides exceptional post-breakage capacity. However, from an acoustic perspective, SGP is a step backwards. Its high stiffness couples the two glass plies so tightly that they behave almost like a single monolithic pane. The coincidence dip is only slightly attenuated, and real-world Rw values for an SGP laminate are typically 1–2 dB lower than an equivalent PVB laminate. Our team advises clients to specify SGP only when structural performance is the overriding priority and to accept the acoustic trade-off.

Acoustic PVB is a modified interlayer formulated with additives that increase the loss factor — the measure of how effectively a material converts vibration into heat. Compared to standard PVB, acoustic PVB can improve the Rw rating by 2–4 dB, particularly in the mid-frequency range where traffic noise and speech are most intrusive. A 6mm + 1.52mm acoustic PVB + 6mm assembly can reach Rw 36–37, bringing it closer to the threshold for highway-adjacent rooms. When combined with asymmetric double-glazed construction, acoustic PVB is our team's recommended interlayer for residential and hospitality projects where both safety and noise control are required.

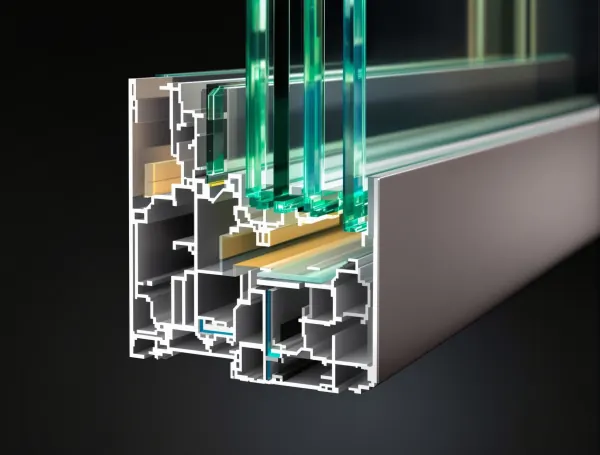

Increasing the glass thickness also improves low-frequency performance. An 8.8mm laminated outer ply (typically 4mm + 1.52mm interlayer + 4mm, or 5mm + 1.52mm + 5mm) pushes the coincidence frequency lower and adds mass where it is most needed for highway noise. Our team frequently specifies asymmetric laminated IGUs with an 8.8mm laminated outer pane and a 6mm monolithic inner pane, creating a configuration that disrupts the coincidence resonance while maintaining practical weight and cost.

When our team specifies acoustic glazing for a project, we communicate performance using two laboratory-derived indices: STC (Sound Transmission Class, ASTM E413) and Rw (Weighted Sound Reduction Index, ISO 717-1). Both ratings attempt to summarise a partition's sound-blocking ability as a single number, but they use different frequency ranges and weighting curves, which means the same glazing assembly can receive different ratings depending on which standard is applied. For Singapore projects, we typically report both values and explain which is more relevant to the specific noise environment.

STC is an American standard defined by ASTM E413. It measures sound transmission loss across 16 one-third-octave bands from 125 Hz to 4000 Hz, then fits a reference contour to the measured data to produce a single number. STC is widely used in construction specifications and building codes, particularly in North America and in projects with international design teams. For the same assembly, STC typically reads 3–5 dB higher than Rw because the ASTM weighting curve is less severe in the low-frequency region. A glazing assembly rated STC 40 might be rated Rw 36–37 for the same physical unit.

Rw is the international standard defined by ISO 717-1. It covers the frequency range 100 Hz to 3150 Hz and uses a reference contour that weights low-frequency performance more heavily than STC does. For traffic noise, aircraft noise, and the rumble of heavy vehicles on Singapore expressways, the Rw rating is more representative of real-world performance because these noise sources are rich in low-frequency energy. Our team therefore recommends using Rw + Ctr — the Rw rating with the spectrum adaptation term Ctr applied — when assessing glazing for highway-adjacent or airport-proximate properties. The Ctr correction penalises assemblies that perform poorly below 250 Hz, which is exactly where standard glazing is weakest.

In practical terms, what do these numbers mean for a Singapore apartment? An interior noise level of 35 dB is generally accepted as comfortable for sleeping. If the exterior facade faces the PIE and measures 75 dB during peak traffic, the glazing assembly must provide at least 40 dB of noise reduction. An assembly rated Rw 35 with Ctr -4 would provide an effective Rw+Ctr of 31, which is insufficient. The same assembly rated Rw 37 with Ctr -2 would provide an effective 35 dB, which is marginal. Our team therefore targets Rw 38+ with Ctr -2 or better for highway-adjacent bedrooms, which typically requires an asymmetric laminated IGU with acoustic PVB or a double-laminated acoustic IGU for the highest performance tier.

Laboratory ratings are measured under ideal conditions — the specimen is mounted in a massive test wall with perfect perimeter seals, and the measurement environment is anechoic. Real-world installations in Singapore buildings rarely achieve the full laboratory rating. Frame leakage, installation gaps, and surrounding wall construction can reduce the effective performance by 3–8 dB. Our team accounts for this by specifying a field performance margin of at least 3 dB below the laboratory Rw value. If the target is Rw 35 in service, we specify a laboratory Rw of 38 or higher. This conservative approach ensures that the installed system delivers the promised acoustic comfort rather than merely meeting a paper specification.

Our team frequently reminds clients that a high-performance glass pane installed in a poorly designed frame will only perform as well as the frame allows. The frame and its perimeter seals are responsible for a surprising share of the total acoustic leakage in typical Singapore installations. We have measured sites where the glass itself achieved Rw 38, but the overall window assembly achieved only Rw 30 because air was leaking around the sash, through the lock mechanism, and under the sill. The frame is not merely a support structure — it is an integral part of the acoustic barrier.

For acoustic glazing, we specify frames with a minimum Rw of 35 for the frame material itself, tested as an independent component. Aluminium frames with a thermal break are common in Singapore, but the break also serves an acoustic function by interrupting the direct metal path from exterior to interior. uPVC and timber frames inherently provide better acoustic isolation than bare aluminium because their material loss factor is higher, but they must be engineered to Singapore's humidity and termite environment. Our team works with frame suppliers who provide acoustic test certificates for their profiles, and we verify these against the project requirements before specifying.

Sealing is the next critical factor. A single compression seal around the sash perimeter is the minimum acceptable standard, but our team prefers double-seal or triple-seal configurations for highway-adjacent properties. These use multiple contact points with the frame rebate to create redundant air barriers. The seal material must remain elastic across Singapore's temperature range — typically silicone EPDM or high-performance TPE rather than basic PVC seals that harden and crack within two to three years. We also specify acoustic backer rods and non-hardening acoustic sealant in the gap between the frame and the structural wall, because this perimeter gap is a common leakage path that undermines even the best glass specification.

Retrofit vs new build presents different challenges. In new construction, the frame can be designed into the wall from the outset, with adequate depth for the glazing unit, proper drainage, and integrated acoustic seals. In retrofit applications — which comprise the majority of our residential acoustic glazing work in Singapore — we must work within the constraints of existing openings, wall depths, and building management rules. For HDB flats, the window opening depth is typically limited, making secondary glazing (an independent internal frame) often more practical than replacing the existing window with a thick IGU. For condominiums, the management corporation may restrict external facade changes, again favouring internal secondary glazing or acoustic-laminated replacements that fit within the existing frame depth.

Our installation process follows a structured sequence. First, we protect the interior with dust sheets and remove the existing glazing carefully to avoid damage to the surrounding wall. Second, we inspect the frame rebate for rot, corrosion, or previous sealant failure, and repair as necessary. Third, we install the new glazing unit with setting blocks, edge spacers, and perimeter packers to ensure the unit is centred and not in point contact with the frame. Fourth, we apply acoustic sealant to the perimeter gap and install the compression seals. Fifth, we test the installation with a smoke pencil or ultrasonic leak detector to confirm that the seal is continuous. Finally, we clean the glass and conduct a walk-through with the client to confirm satisfaction. This process typically takes one to two days per residential unit.
